I–LS – intelligent LED Solution
i-LS Microprocessor Unit
Dimensions: 24 x 32 x 9mm
Part Numbers

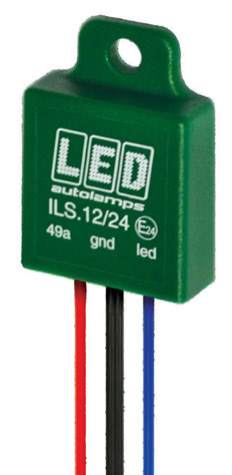

ILS.12/24
– i-LS Microprocessor Unit
(4 Wire) – 12/24V Multivolt
12/24V Multivolt
Fully Waterproof
Does Not Generate Heat
One Unit Required for Each
Indicator Lamp
The i-LS Microprocessor prevents
unreliable failure signals being
generated from indicator lamps,
which can be caused by the
extremely low current draws used
by LED lamps when installed on
traditional bulb lighting systems.
ISO 13207-1:2012 Compliance
i-LS Relay
Dimensions: 28 x 67 x 28mm
Part Numbers

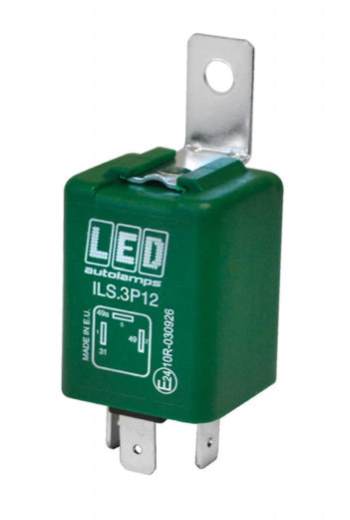

ILS.3P12
– i-LS Relay 3 Pin – 12V – for Rigid Vehicles (Max 90W)
ILS.3P24
– i-LS Relay 3 Pin – 24V – for Rigid Vehicles (Max 90W)
ILS.4P12
– i-LS Relay 4 Pin – 12V – for Vehicles w/ Trailers (Max 140W)
ILS.4P24
– i-LS Relay 4 Pin – 24V – for Vehicles w/ Trailers (Max 140W)
Available in 12V or 24V
Fully Waterproof
Does Not Generate Heat
To be Used in Conjunction with the i-LS Microprocessor
Plugs Directly into your Fusebox
Our i-LS Relay has been designed to be used in conjunction with
our i-LS Microprocessor, allowing the reliable detection of an LED
indicator failure.
The system alerts the driver when an indicator has failed by increasing
the flash rate, or terminating an indicator light on the dashboard.
relay
NEW
Wiring Diagram
