89

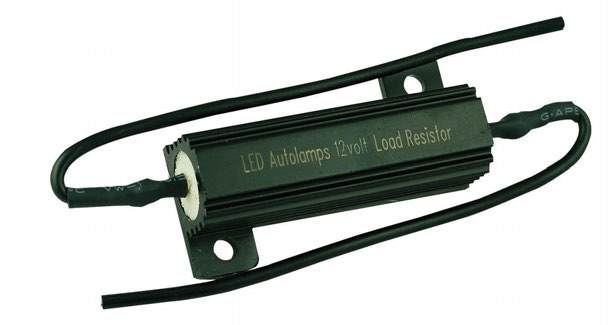

LR12
– 12V
Dimensions: 50 x 15 x 15mm
50watt 6Ω

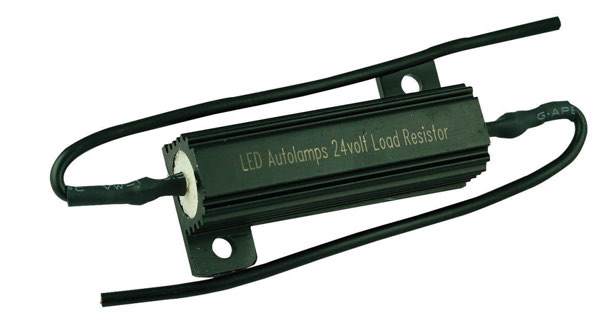

LR24
– 24V
Dimensions: 50 x 15 x 15mm
50watt 24Ω
Available in 12V or 24V
Important Notice:
Must be mounted on metal surfaces. The resistor can reach up to
170°C, do not mount the resistor on any surface that can melt by the
heat of the resistor, this includes plastics, hoses or painted surfaces.

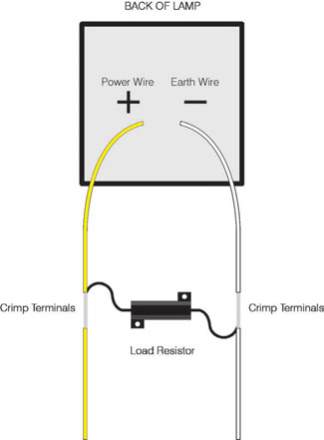

Correct Fitting:
Using the cable terminals supplied ensure that when the wires are
connected they provide a completely waterproof connection to ensure
safe operation of the vehicle. Make sure the load resistor is secured
firmly to an appropriate surface by using the screws provided. If in
doubt of the correct fitting procedure of this product please consult a
qualified automotive electrician.
The dummy load resistor is designed to be used on vehicles that
have electronic components that are not LED compatible. The use
of an optional load resistor simulates the current draw used by a
standard direction indicator bulb and enables the flasher unit to
operate correctly.
!
Load Resistors
